Start by selecting an accurate 3D model file of the shooting mechanism. Ensure that the model is compatible with your 3D printer, supporting the desired resolution and level of detail. Most designs come in STL or OBJ formats, making them ready for most common 3D printers.
Once you’ve downloaded the model, you’ll need to choose the appropriate material for printing. PLA (Polylactic Acid) is a commonly used filament due to its ease of use and durability. However, if you plan on using the device repeatedly, consider stronger materials like ABS or PETG for better longevity and strength.
After printing the parts, carefully assemble them according to the instructions provided with the model. Ensure that all moving components, such as the trigger mechanism and string holder, are aligned properly to avoid any functional issues. Using small screws or adhesives may be required to secure certain parts for a sturdier build.

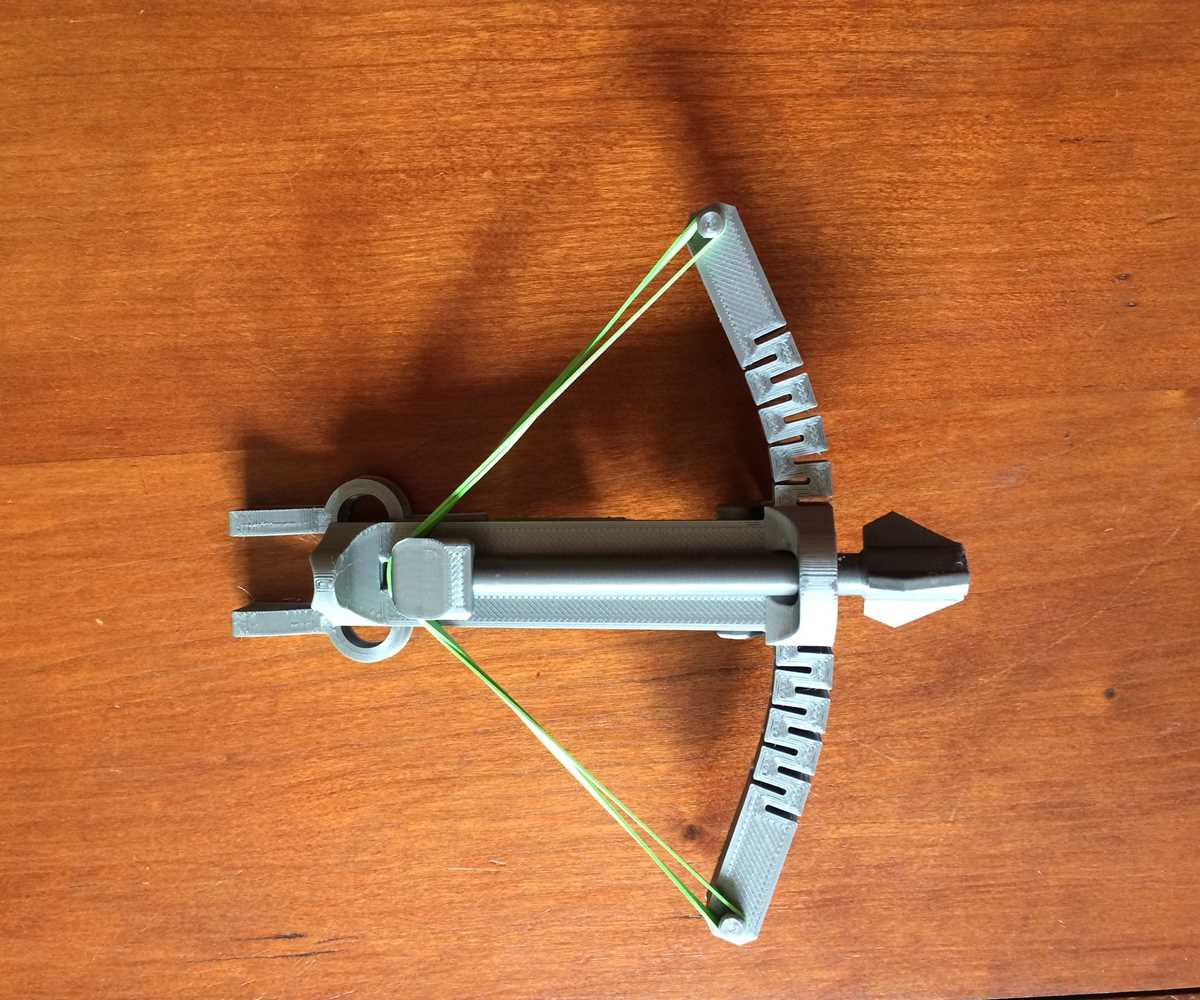

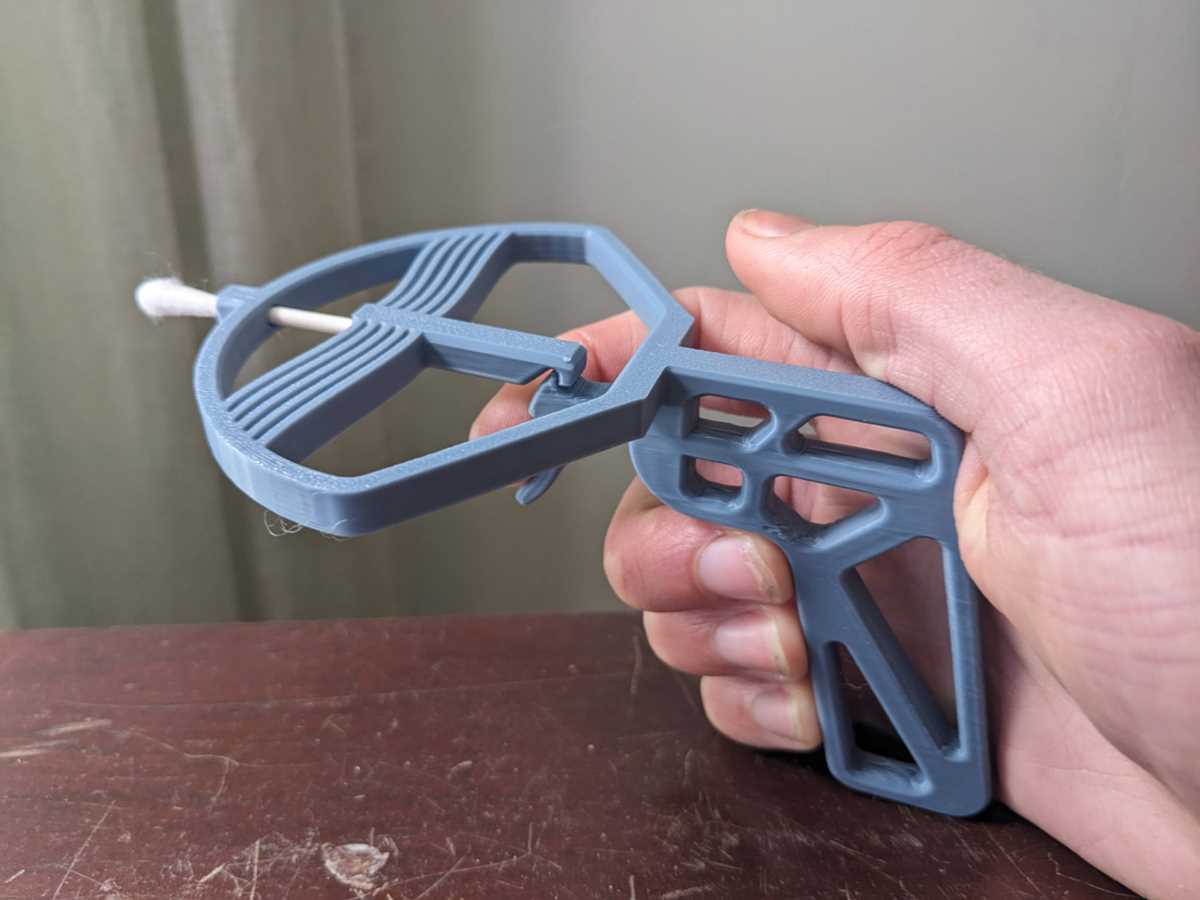

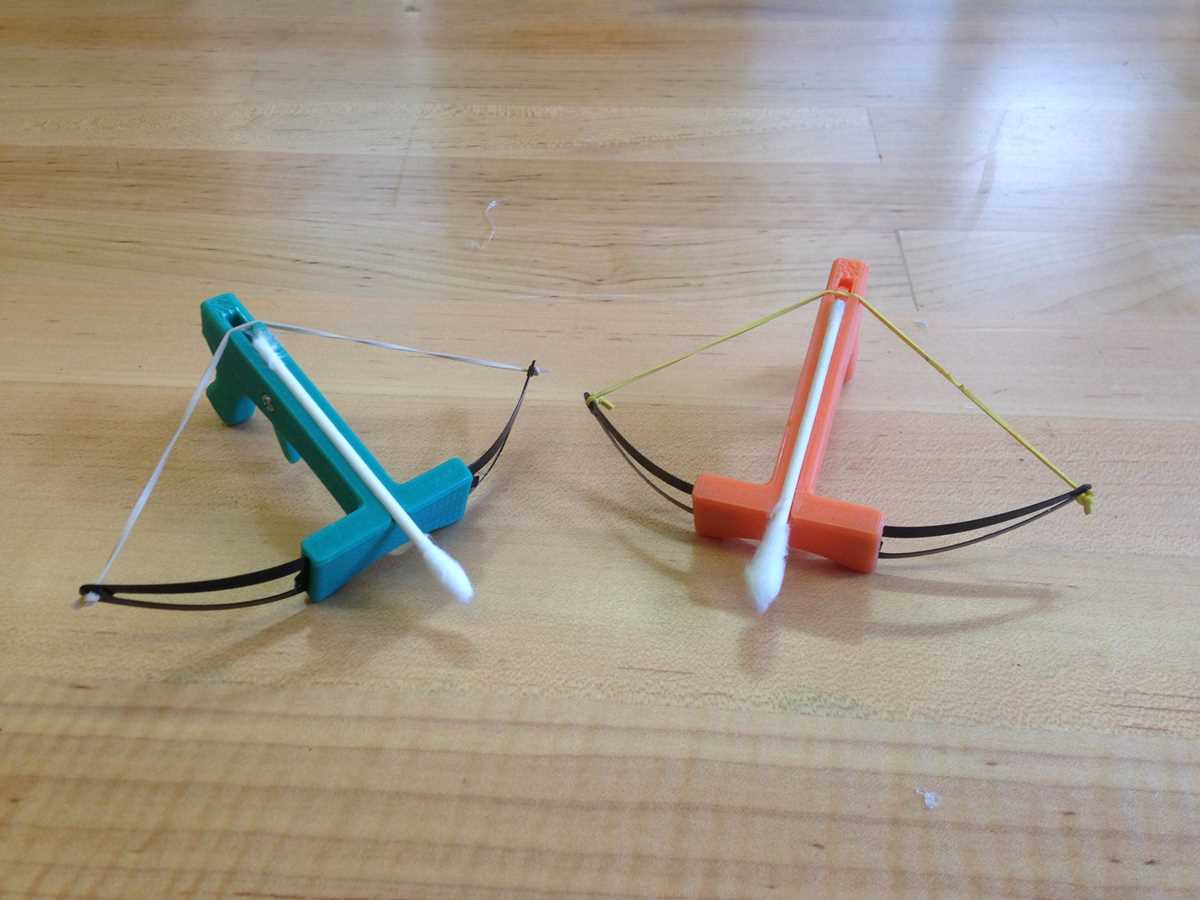

3D Model for a Functional Shooting Mechanism
For a DIY shooting device, look for models that offer both simplicity and durability. A well-designed mechanism should feature clear instructions for assembly and parts that are easy to print on most 3D printers. Opt for designs that include adjustable components for fine-tuning performance, such as trigger tension and string tightness, which are key to functionality.
After printing, ensure that the moving parts, such as the trigger and string housing, are precisely aligned. Use strong adhesive or small screws where necessary to secure the parts in place. Testing the assembly by shooting at various targets can help identify any adjustments needed to optimize its accuracy and reliability for repeated use.
How to Find and Download 3D Shooting Mechanism Models
Start by visiting trusted websites that specialize in 3D models for DIY projects. Popular platforms like Thingiverse, MyMiniFactory, and Pinshape have an extensive collection of designs available for free or at a reasonable price. Use relevant keywords such as “3D shooter” or “mechanism design” in the search bar to narrow down your options.
When browsing through designs, make sure to check the file types provided, as the most common are STL and OBJ. These formats are widely supported by most 3D printing software, ensuring a smooth printing process. Some platforms may also offer G-code files, which are pre-configured for specific 3D printers.
Before downloading, check the reviews and ratings of the model. User feedback often reveals if the design works well and if any issues were encountered during printing or assembly. Models with higher ratings are usually more reliable for your project.
Verify the scale of the design. Some models are designed for smaller or larger print sizes. Check the dimensions of each part before starting the print to avoid wasting filament or time. Many websites allow you to adjust the scale settings directly in your 3D printer’s slicing software.
Ensure the design includes all necessary parts and instructions. Some models may require specific accessories or hardware, such as springs or screws. Carefully read through the instructions and check if any parts need to be sourced from external suppliers.
If the model does not come with assembly instructions, search online for tutorials or video guides. There are numerous 3D printing communities and forums where hobbyists share helpful tips and tricks for assembling complex designs. These can be especially useful if you encounter issues during the build.
Once you’ve found a suitable model, download it to your computer or cloud storage. Organize your files properly for easy access and make sure the model’s resolution is high enough to ensure accurate prints. Higher resolution files tend to provide better detail in the finished product.
Finally, double-check that your 3D printer is compatible with the materials required for the build. Some models may be optimized for specific filament types, such as PLA or ABS. Ensure you have the right material before starting the print to avoid errors or subpar results.
