To incorporate customized fasteners into your creations, start by designing them to fit specific requirements. Use 3D design software to create models that suit the exact specifications needed for your task. Ensure the dimensions match the intended use, whether for mechanical or decorative purposes, to avoid compatibility issues.
Next, consider the material that will provide the best durability for your printed pieces. Materials like PLA or ABS are commonly used, but for heavy-duty applications, opt for stronger filaments such as nylon or carbon fiber-infused options. These materials offer greater strength and resistance to wear, making them ideal for functional parts in machinery or tools.
Once your design is ready and you’ve chosen the right material, the printing process itself is relatively straightforward. Most 3D printers can handle fastener production, but it’s crucial to adjust the print settings for optimal results. Use the right layer height, temperature, and print speed to ensure the threads and threads’ engagement are clear and precise, which is necessary for a good fit.
Designing and Printing Custom Fasteners
To create custom fastening components, begin by selecting the right design software such as Fusion 360 or Tinkercad. These tools allow you to input precise dimensions for the threads and head type based on the application. Focus on thread pitch, diameter, and length to ensure the component fits seamlessly with other parts in your project.
Next, choose the appropriate material for your fasteners. For most everyday uses, PLA or ABS are sufficient. However, if your application requires increased strength or resistance to heat, opt for materials like nylon or polycarbonate. Some advanced filaments, such as carbon fiber-infused, offer enhanced strength, making them suitable for more demanding mechanical uses.
Once your design and material choice are confirmed, fine-tune your 3D printer’s settings for optimal results. Ensure the layer resolution is high enough to create clean, functional threads. If using a home 3D printer, you may need to experiment with various settings such as temperature and speed to ensure the best finish and proper thread formation for secure engagement.
How to Design Custom Fasteners for 3D Printing
Start by defining the purpose and requirements for your custom fastening parts. Determine the desired diameter, length, and type of head, whether it’s a flat, hexagonal, or countersunk design. Take into account the material compatibility with other components you will be joining.
The next step involves selecting the thread profile. The most common are triangular, square, and trapezoidal profiles. For standard applications, the triangular profile is ideal, as it allows for strong and reliable engagement. However, for more specialized tasks, square or trapezoidal threads can offer better grip or load-bearing capacity.

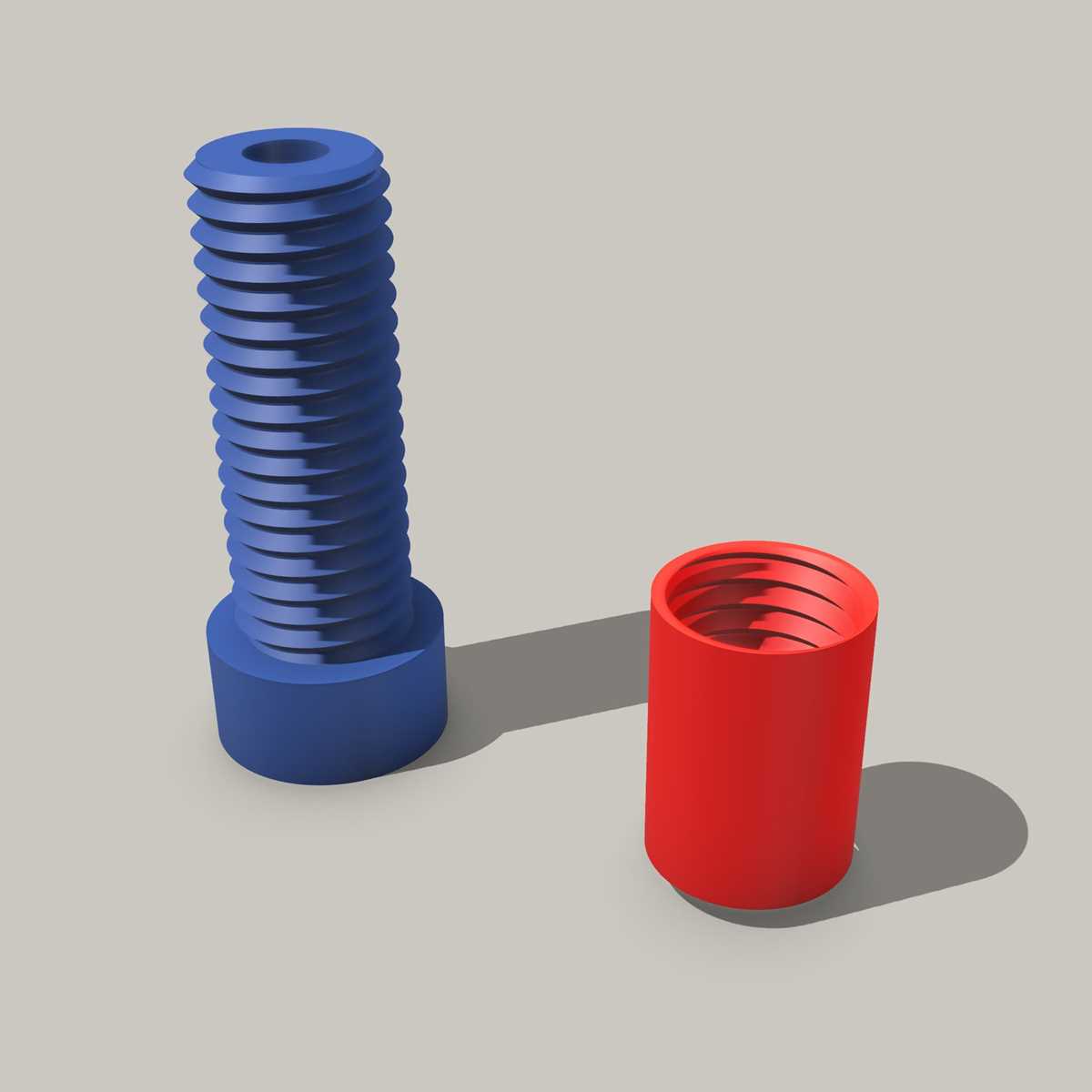

After deciding on the thread profile, use 3D modeling software like Fusion 360, SolidWorks, or Tinkercad to create the fastener model. Focus on achieving precise thread dimensions to ensure smooth fitment with corresponding parts. Inaccurate thread geometry can lead to poor engagement, making the fastening ineffective.
Consider adding a fillet or radius where the thread meets the shaft to prevent weak points that may cause breakage. These small design features can dramatically increase the durability of the part. For added strength, you can also add an internal or external reinforcement ring around the body of the fastener.
Choose the correct tolerances for the threads and components. For 3D printing, too tight of a tolerance might cause difficulty in assembly, while too loose a fit may lead to weak connections. Test different tolerances by printing test pieces before moving on to the final design.
Next, select the material for your fasteners. For most standard applications, PLA or ABS works well. However, for parts subjected to high temperatures or mechanical stress, opt for more durable materials like nylon, PETG, or polycarbonate. Materials like carbon fiber or fiberglass-infused filaments can increase strength further, making them suitable for demanding tasks.
Once your design is ready, export the model as an STL or OBJ file and prepare it for 3D printing. Set the printer’s resolution to a fine setting, especially for threads. Ensure the printing orientation is optimal to prevent thread deformation. If possible, print a few test versions with different settings to ensure thread accuracy and fit.
After printing the fastener, you might need to perform post-processing steps like cleaning up excess material or smoothing the threads. Fine-tuning your printed part ensures it operates properly and fits well with other components.
