To achieve the correct threading, selecting the right hole size is crucial. It ensures the bolt fits securely and the thread forms without any damage. Follow the steps below to pick the correct bit size for your specific threading needs.
Using the Correct Hole Diameter for Threads
Each thread type requires a specific hole diameter to ensure that the bolt or screw fits properly. The diameter must match the outer diameter of the threading, minus the material that will form the thread. A general guideline is that the hole size should be around 75-85% of the outer diameter of the threading. This provides enough material for the thread to cut while also ensuring a tight, secure fit.

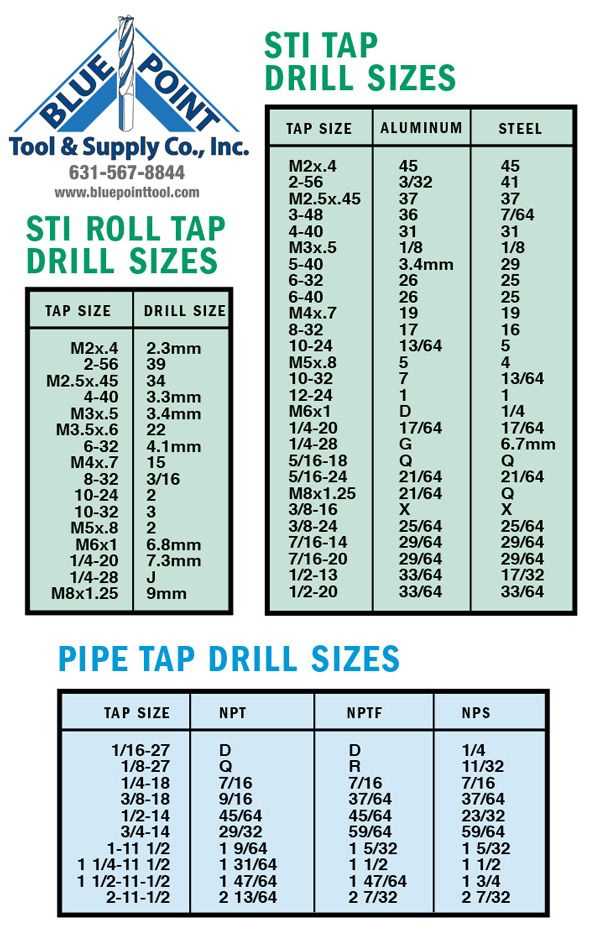

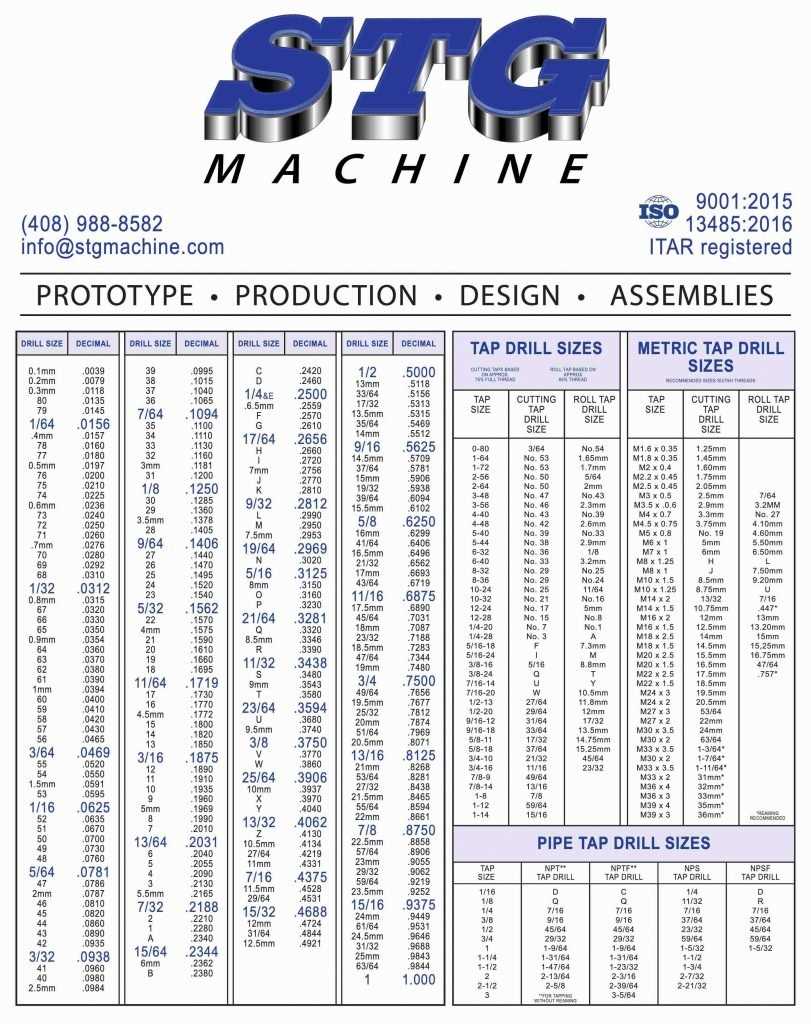

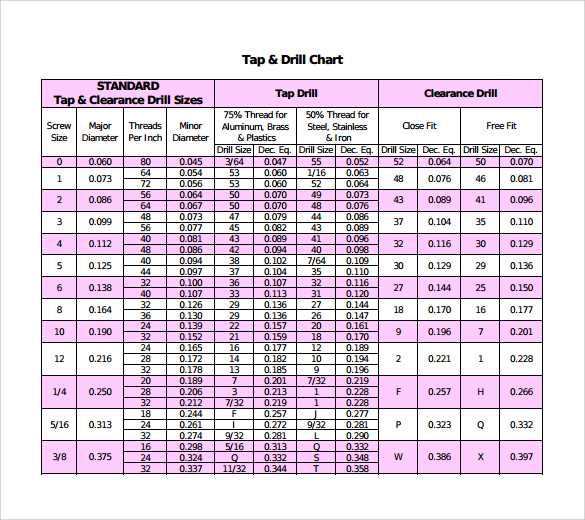

To determine the ideal diameter for a specific thread, you can refer to standard thread size charts. These charts show the required hole diameter for each threading size. For instance, a common size like ¼-inch thread may require a hole size of 7/32-inch, while a smaller size, such as a #6 thread, might need a 7/64-inch hole.
Why Correct Sizing Matters for Successful Threading
Incorrect hole sizing can lead to various issues, such as stripped threads, difficulty in inserting fasteners, or even breaking the material when tapping the hole. If the hole is too small, the threading tool may not be able to cut properly, causing the thread to be too shallow or incomplete. On the other hand, if the hole is too large, the threads won’t engage fully, making the fastener loose.
Therefore, always double-check your measurements before beginning any threading work. Using precise hole sizes will ensure a tight, long-lasting fit for your bolts and screws. Using a reliable reference chart and measurement tools will reduce the chance of errors and lead to more successful and professional results.
Precise Sizing for Threading Holes

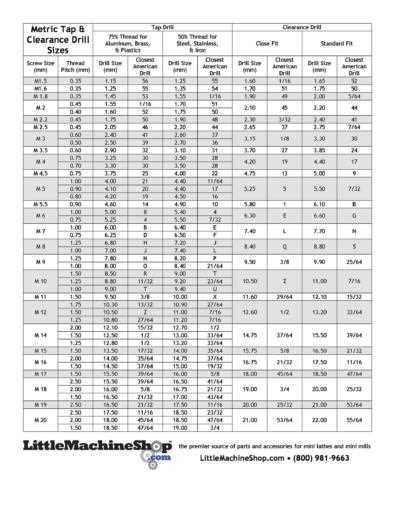

To achieve accurate threading, the hole size must align with the outer diameter of the fastener. Using the correct hole diameter allows the threading tool to engage properly, creating clean and precise threads. For metric threads, hole sizes are determined based on the type of thread and the material being drilled. For example, a common size like M6 requires a 5mm hole to accommodate the threading process effectively.
Understanding Threading Standards
When preparing holes for threading, it’s important to know the specific threading standards in use, whether they are for imperial or metric sizes. Imperial threads typically follow UNC or UNF standards, while metric threads use the ISO system. Each of these systems has corresponding hole sizes that ensure proper threading. Refer to a reliable guide that provides these measurements for each thread type and material, such as steel or aluminum, to avoid any confusion or errors.
Material Considerations for Hole Sizing
The material you’re working with plays a crucial role in determining the appropriate hole diameter. Softer metals like aluminum require slightly larger hole sizes compared to harder materials like stainless steel. This adjustment ensures that the threading tool can effectively create the threads without causing the material to strip or break. For softer materials, a slightly larger hole helps avoid damaging the surrounding area.
Common Sizes and Their Applications
Common sizes, like ¼-inch or M8, are frequently used in many projects. For example, a ¼-inch screw requires a hole that is about 7/32-inch in diameter. Similarly, an M8 bolt typically needs a 6.8mm hole. It’s important to know these common sizes and their corresponding hole diameters to ensure a smooth threading process and prevent issues like loose or weak threads.
Using Hole Sizing Charts for Accuracy
Using a hole sizing guide or chart is one of the best ways to ensure that you choose the correct diameter. These charts provide precise measurements for various types of threads and materials. By simply looking up the size of the fastener you intend to use, you can quickly determine the corresponding hole size for a perfect fit. Many charts also include guidance on adjusting hole sizes based on material thickness and type.
Double-Checking Measurements for Better Results
Before starting any threading process, always double-check the hole size measurements. Small discrepancies can lead to poorly fitting threads that don’t hold well or even ruin the material. Using a caliper or micrometer to measure the hole before threading ensures accuracy. This step may take extra time, but it guarantees that the final product will perform as expected and last longer.
